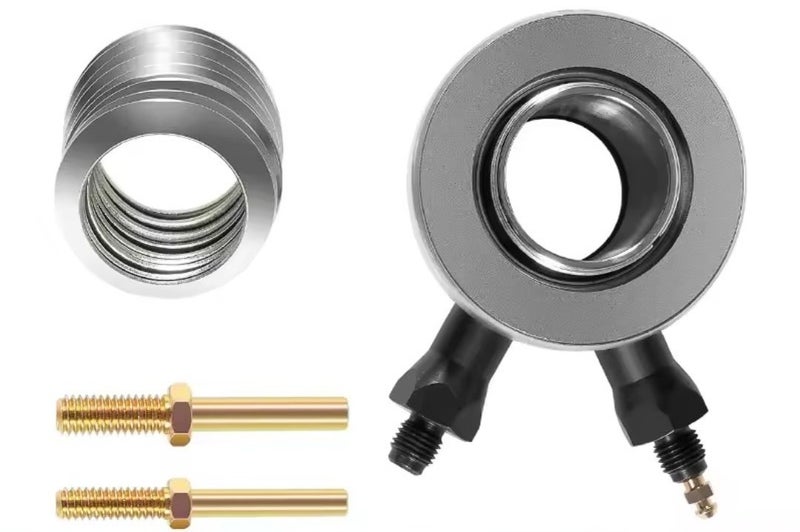

Howe Throw Out Bearing

Designed for race classes that require a stock-style clutch setup. Installs easily by replacing just one bolt on the front of your transmission. Includes conical shims for adjusting static height.

Built to suit Saginaw, T-10, Muncie, and Jerico gearboxes, but can work with others that use the same diameter bearing retainer. The inner diameter of the bearing is 1.379" – check your transmission's input collar to confirm fitment.

Specs:

• Compressed thickness: 1.688"
• Extended length: 2.375"
• Total travel: 0.688"

Recommended setup: 3/4" bore master cylinder, minimum 6:1 pedal ratio. Check if a pedal stop is needed for your setup.
